Mixing Valve with Thermometer & Tee
- Includes stainless-steel thermometer with brass thermometer tee.
- Attaches to valve for easy and accurate temperature setting and monitoring.
Mixing Valve
$359.00 – $479.00

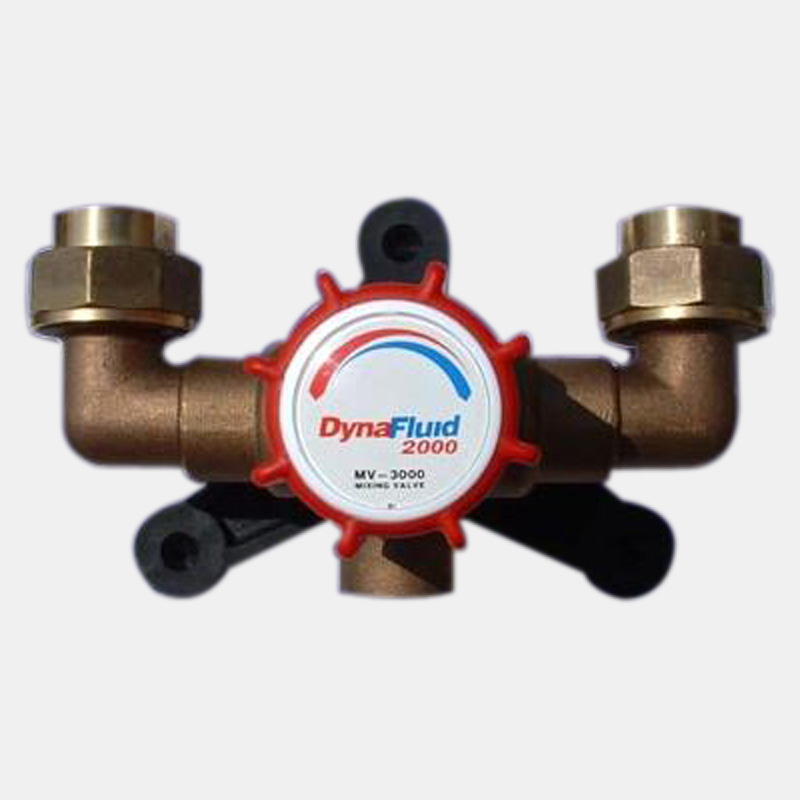

DynaFluid Thermostatic Mixing Valve
Simple, economical solution for fast, temperature-controlled warm water for tubs, or hot water for washing down kennel floors and cages, etc. Cut-a-way image and dimensional drawings
- Control knob adjusts water temperature from 60 to 140 degrees (90 to 95 degrees recommended for pet washing). Under normal conditions, temperature is held within +/- 5 degrees.
- Fail safe design: Immediate shut-off in the event of cold water failure.
- Can be installed wherever a ready supply of hot water is available.
- 7 PSI to 90 PSI operating pressure (150 PSI static pressure).
- Requires no gas or electricity.
- Designed by T&S Brass – quality made throughout for long life.
- Simple to maintain. Can be serviced without removal.
- Replaceable temperature control cartridge.
- Complete with strainers and check valves.
- Connections are industry standard 3/4″ NPT female threads, with 6″ (150mm) pipe centers.
Note: Single-inlet faucets are generally used with thermostatic mixing valves, as hot and cold water does not have to be mixed at the faucet.
Caution: Many mixing valves are designed for other applications where hotter water is needed, so do not have thermostats that go low enough (this unit DOES).
| Flow Rates Pressure (PSI) | Flow Rates Pressure (PSI) |
| 10 | 6 |
| 20 | 8.5 |
| 30 | 10 |
| 40 | 12 |
| 50 | 13 |
| 60 | 14.5 |
| 70 | 16 |
| 80 | 17.5 |
| 90 | 19 |
